Products
-
Sewage purification separation equipment
Class：Solid liquid treatment equipme
Specs：
Price：
Telephone：024-25354582
Product description
Product Image
 |
 |
 |
 |
 |
 |
 |
 |
Product introduction
Description：

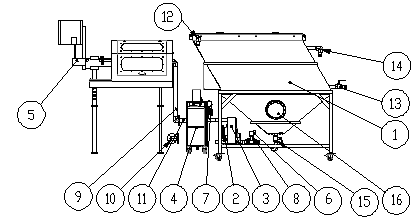

①-inclined tube sedimentation tank、 ②-pneumatic double diaphragm pump、 ③-sewage pump、④-drug mixing tank、
⑤-filter press、⑥-electromagnetic valve、⑦-electric contact pressure gauge 1.6MPa、 ⑧-2 butterfly valve、
⑨-Connection line、 ⑩-2.5 elbow、?-Bellows、?-Sewage water inlet、
?-Water outlet、 ?-Water purification overflow、?-Sludge discharge、 ?-Maintenance port。
一：Inclined tube sedimentation tank：
1：Product number：HF-XG-2V
2：Overall structure using materials：304
3：Overall volume=2m³（The sewage volume is 1.6m³ the purified water volume is 0.4m³）
4：The chemical reaction time of the sewage in the inclined tube sedimentation tank is controlled between 30 and 60 minutes.。
5：Inclined tube aperture (inclined slanting distance) is 80mm, length 1m, inclined tube inclination 60°。
二：Potion tank：
1：Overall structure using materials：304
2：Composition: box, mixer（0.37KW）、Metering pumps（0.48L/H）
3：Volume 100L
4：The inlet water of the sewage inlet of the inclined pipe sedimentation tank is synchronized with the dosing of the metering pump。
5：Dosage ratio: 30% polyaluminum chloride powder is used in this equipment, and the recommended dosage of the mixing tank is 15% of the muddy water. According to the 3% ratio of the mud water of each manufacturer, according to the actual situation. User-defined).
Three: Filter Press:
1: Product model: XMY3/500U
2: X---box
3: M---Mingflow
4: Y---Hydraulic:
5: U--- indicates that the filter plate material is polypropylene.
6: Filter plate size, 500*500*50:
7:p indicates the filter area, 3m²
8: Filter medium: filter cloth.
The company's filter press has five major components: the frame part, the filter part, the hydraulic part, the unloading device and the electrical control system.
